What is Sheet Metal Hydroforming PressUpdate:2024-05-06     Hits:267

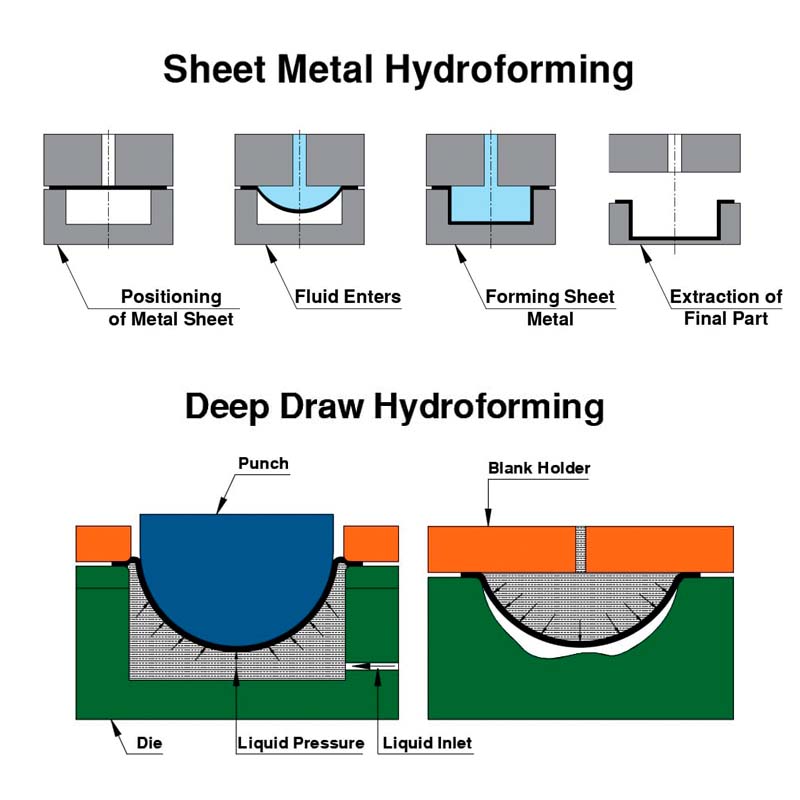

Sheet metal hydroforming press is a metalworking process used to shape ductile metals into lightweight and strong parts, primarily used in the automotive, aerospace, energy, and military industries. The process involves using high-pressure hydraulic fluid to press metal against a die, creating intricate shapes and components with increased structural integrity and reduced weight. Here's a detailed look at the specifications and capabilities of sheet metal hydroforming presses based on the provided web search results.
Hydroforming press is a unique forming process, most deep drawn parts are usually drawn in a single operation.

Hydroforming Specifications
Capacity: Ranges from 1,000 tons to 5,000 tons.
Equipment Capabilities: CNC controlled for precision.
Materials Processed: Aluminum, stainless steel, copper, brass, high-temp alloys like Inconel and titanium.
Advantages of Hydroforming
Formality: Higher than conventional stamping, reducing localized thinning.
Tooling Costs: Lower with reduced set-up and development costs.
Complex Shapes: Ideal for forming intricate shapes and irregular contours.
Surface Quality: Minimizes scratching and damage due to less contact.
Industry Applications
Aerospace: Components like exhaust tailpipes, plenum housings, inlet plenums, etc.
Automotive: Body panels, exhausts, engine mounting brackets.
Commercial Products: Radiator frames, bicycle components.
Military and Defense: Detailed components, brackets, enclosures.
Production Capabilities
Tolerances: As precise as ±0.0025 inches.
Inspection and Testing: Uses high-resolution CMM equipment and various testing methods.
Industry Standards
Certifications: ISO etc, accredited for special processes.
Machinery: Offers hydroforming presses ranging from 1,100 tons to 5,000 tons with customizable bolster areas.
Goodsjack/Delishi Hydraulic Machinery: Boasts two factories dedicated to sheet hydroforming in China, capable of hydraulic press for handling complex parts.
Sheet metal hydroforming presses are key to the production of high-strength metal components with minimal waste and maximum efficiency, serving a wide range of industries with their ability to create complex, lightweight parts.
