Maintenance of Hot Forging Hydraulic Press for Piston RodUpdate：2023-03-27 Hits：230

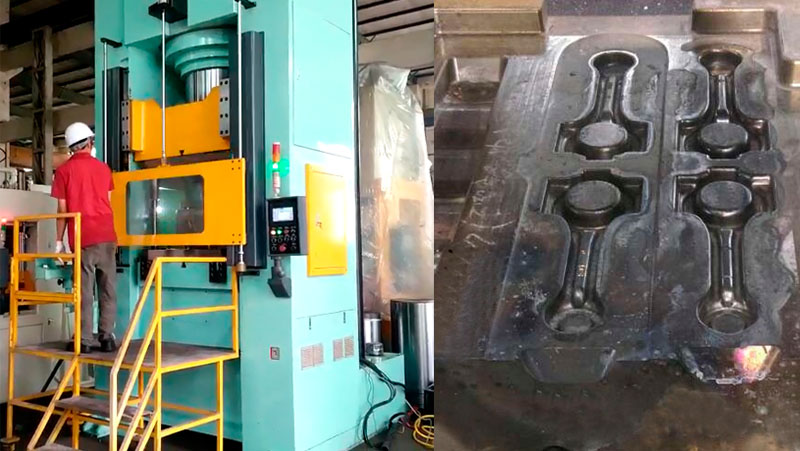

The hot forging hydraulic press for piston rod adopts a three-beam and four-column structure, which is mainly composed of a fuselage, an oil cylinder, a hydraulic transmission system, an electric control system, and a lubrication system. This machine has an independent power system and electrical system.The hydraulic system adopts advanced two-way cartridge valve control technology, which effectively solves hydraulic control problems such as large flow, fast speed and fast pressure relief of forging hydraulic presses.
Maintenance of Hot Forging Hydraulic Press for Piston Rod
1. Daily inspection, maintenance and replacement of vulnerable parts.
2. Lubrication and anti-wear of movable metal parts, and fastening of standard parts (such as bolts and nuts).
3. Maintenance of the surface and interior of the hot forging piston rod hydraulic press - 400 tons, 500 tons 630 fast hot forging hydraulic press (such as the inside of the electrical control cabinet), such as avoiding paint scratches, avoiding oil and dust accumulation, and keeping the appearance clean.
4. Observe whether the exposed electrical components are damaged every day, and occasionally open the control cabinet to clean up the dust and observe whether there are disconnected lines and connectors.
5. If oil leakage is found, replace the seal with the seal, and replace the connector with the connector.
6. If the hot forging piston rod hydraulic press - 400 tons, 500 tons 630 fast hot forging hydraulic press is faulty, replace the spare valve. If the electric hydraulic pump in the control cabinet is faulty and the equipment is no longer running, it will be repaired if it can be repaired, and it will be replaced if it cannot be repaired.
7. Check to see if the hydraulic oil changes color every month. If it becomes turbid and black, if there are more impurities, replace it directly, including the filter element at the oil inlet of the fuel tank.
8. Don't touch the piston rod if you have nothing to do. Don't touch the four-column hot forging piston rod hydraulic press - 400 tons, 500 tons 630 fast hot forging hydraulic press. If it is not used for a long time, apply some anti-rust oil on it.
9. Tighten the screws and nuts every three months and half a year, the connecting parts should be lubricated, and the ordinary parts should be rust-proof.
The hydraulic transmission system of the hot forging hydraulic press for piston rod adopts a hydraulic proportional servo control system, and the working pressure precision and precision level are high. The movement of hot forging hydraulic press system components is flexible and fast. The hydraulic press machine controls the pressing amount and stroke of the movable load-bearing beam through the computer system, and at the same time, the hydraulic machine and the operating vehicle are linked together for control.
