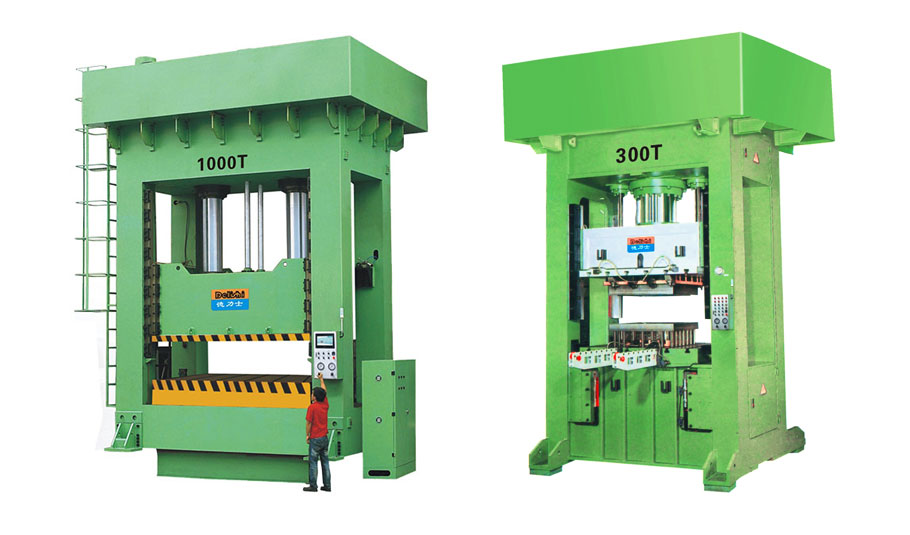

Frame Rails Precision Hydraulic Molding Machine
This Frame Rail Precision Hydraulic Molding Machine was mainly applied to metal materials cold extrusion, stamping, light stretching, blanking and other purposes. Water canal, auto parts and so on. Brand Name : GOODSJACK
Model number : GSJ-DKL
Product Type : Servo Cold Extrusion
Payment Terms : T/T,L/C
Package : Bubble pack and wooden box
Minimum Order : 1 set
Delivery Time : 45-70 working days
Place of origin : China
Price Terms : FOB,C&F,CIF
Detail

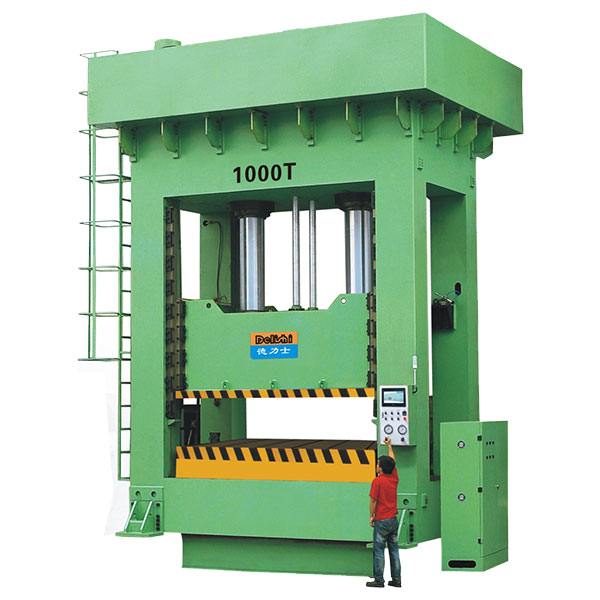

Frame Rails Precision Hydraulic Molding Machine
1. Using the framework of all eight rail structures, high precision, stable operation;
2. Good rigidity, resistance to lateral force, applied to suppress the high precision, and asymmetric product;
3. Such as auto parts, sink deep drawing products;
4. Choice German Bosch Rexroth hydraulic components and Japan NOK seal;
5. Using programmable controller or Siemens mitsubishi.
Mainly applied to metal materials cold extrusion, stamping, light stretching, blanking and other purposes. Water canal, auto parts and so on.
| Model | Rated capacity (ton) |
Table Area (mm) | Motor Power (kw) |
Open Height (mm) |
Master Cylinder Stroke | Descending Speed (mm/s) |
Pressing Speed (mm/s) |
Ascending Speed (mm/s) |
Cushion Capacity (ton) |
Hydraulic cusion table size(mm) | Stroke of hydraulic cushion(mm) |
Hydraulic cusion motor power(kw) |
| DKL-100 | 100 | 1000×800 | 15 | 800 | 500 | 250 | 15～20 | 250 | 30 | 800×600 | 250 | 3.75 |
| 1500×1200 | 22 | 350 | 20～25 | 350 | 1200×900 | |||||||
| DKL-200 | 200 | 1000×800 | 30 | 1000 | 700 | 250 | 15～20 | 250 | 75 | 800×600 | 250 | 5.5 |
| 1500×1200 | 45 | 350 | 20～25 | 350 | 1200×900 | |||||||
| DKL-300 | 300 | 1200×1000 | 45 | 1200 | 800 | 250 | 15～20 | 250 | 100 | 1000×800 | 300 | 7.5 |
| 2000×1500 | 75 | 350 | 23～30 | 350 | 1500×1200 | |||||||
| DKL-400 | 400 | 1200×1000 | 55 | 1200 | 900 | 250 | 10～15 | 250 | 150 | 1000×800 | 300 | 7.5 |
| 2000×1500 | 75 | 350 | 20～25 | 350 | 1500×1200 | |||||||
| DKL-500 | 500 | 2500×1500 | 75 | 1600 | 1200 | 300 | 10～15 | 300 | 200 | 2020×1120 | 400 | 15 |
| 3500×2000 | 110 | 400 | 20～25 | 400 | 2920×1420 | |||||||
| DKL-600 | 600 | 2500×1500 | 110 | 1600 | 1200 | 350 | 10～15 | 350 | 200 | 2020×1120 | 400 | 15 |
| 3500×2000 | 400 | 23～25 | 400 | 2920×1420 | ||||||||
| DKL-800 | 800 | 2500×1500 | 150 | 2000 | 1500 | 350 | 10～15 | 350 | 300 | 2320×1420 | 500 | 30 |
| 4000×2500 | 400 | 20～25 | 400 | 3220×2020 | ||||||||
| DKL-1000 | 1000 | 2500×1500 | 150 | 2000 | 1500 | 350 | 12～15 | 350 | 400 | 2320×1420 | 500 | 30 |
| 4500×2500 | 400 | 20～25 | 400 | 3820×2020 | ||||||||
| DKL-1200 | 1200 | 2500×1500 | 150 | 2000 | 1500 | 350 | 12～15 | 350 | 500 | 2320×1420 | 500 | 30 |
| 4500×2500 | 400 | 20～25 | 400 | 3820×2020 | ||||||||
| DKL-1500 | 1500 | 4000×2500 | 150 | 2000 | 1500 | 350 | 12～15 | 350 | 500 | 3220×2020 | 500 | 37 |
| 5000×2500 | 400 | 20～25 | 400 | 4420×2020 | ||||||||
| DKL-2000 | 2000 | 4000×2500 | 180 | 2000 | 1500 | 350 | 10～15 | 350 | 600 | 3220×2020 | 500 | 37 |
| 5000×2500 | 400 | 20～25 | 400 | 4420×2020 |
