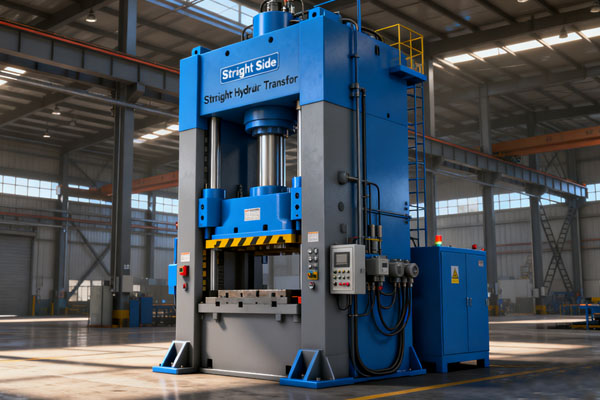

Energy-Saving Straight Side Hydraulic Transfer PressesUpdate：2025-10-27     Hits：280

Energy-saving straight side hydraulic transfer presses are advanced industrial equipment that combines the advantages of straight - side presses and hydraulic transfer technology, while also featuring energy - saving characteristics. These presses are mainly used in metal forming and stamping processes, such as automotive part manufacturing, sheet metal processing, and precision stamping. They can accurately transfer workpieces between different dies, realizing automated production processes.

What is a Straight Side Hydraulic Transfer Press?
● Straight Side: The press frame consists of two vertical columns (or more) connected to a crown (top) and bed (bottom). This design provides exceptional rigidity and guidance, minimizing deflection under high, off-center loads. This is crucial for precision stamping and coining operations.
● Hydraulic: The pressing force is generated by hydraulic cylinders, which use pressurized fluid. This allows for infinite control over force, speed, and position throughout the entire stroke.
● Transfer Press: An integrated, automated system of mechanical fingers (or transfer rails) that picks up a part from one station and precisely moves it through a series of dies within a single press. This creates a fully automated production cell for complex, multi-step parts.
● Energy-Saving: Modern iterations incorporate advanced systems like variable-speed pump drives, energy recovery systems, and smart controls to drastically reduce electricity consumption compared to traditional hydraulic presses.
How It Works: The Automated Stamping Process
A transfer press performs multiple operations on a single part in one continuous cycle:
1. Blank Feeding: A coil of metal is fed into the first station of the press.
2. Stamping Sequence: The part is sequentially moved through a series of dies (e.g., pierce, draw, bend, flange, trim).
3. The Transfer Mechanism: Synchronized with the press cycle, the transfer fingers grip the part, lift it, move it to the next station, and place it accurately into the next die.
4. Hydraulic Power: The main hydraulic cylinder(s) provide the tonnage for each forming step. The programmable nature of hydraulics allows for different forces and speeds at different stations if needed.
5. Part Ejection: The finished part is ejected from the final station, often onto a conveyor belt.
All this happens within the confines of a single press, eliminating the need for multiple individual presses and intermediate handling.

Key Advantages of Energy-Saving Models

Feature	Traditional Press	Energy-Saving Transfer Press	Benefit
Energy Consumption	High; runs at constant speed.	Significantly Lower; matches power to demand.	Reduced Operating Costs & Carbon Footprint
Production Efficiency	High, but with multiple presses.	Extremely High; one press, one cycle.	Lower Labor Costs, Higher Output, Reduced Floor Space
Part Quality & Complexity	Good, but requires multiple handlings.	Excellent; single setup, precise transfer.	Consistent Tolerances, Complex Geometries, No Handling Damage
Flexibility	Low; dedicated tooling.	High; quick die change capabilities.	Faster Changeovers for Different Parts(JIT Manufacturing)
Control & Monitoring	Basic	Advanced CNC & IoT Ready	Real-time Data, Predictive Maintenance, Process Optimization

Application Cases of Energy-saving Straight Side Hydraulic Transfer Presses
● Automotive Industry: In automotive part manufacturing, energy - saving straight - side hydraulic transfer presses are widely used in the production of body panels, engine parts, and transmission parts. For example, in the stamping process of car doors, the press can accurately transfer the sheet metal between different dies to complete processes such as punching, bending, and forming, improving production efficiency and product quality while reducing energy consumption.
● Electronics Industry: In the electronics industry, these presses are used for the production of precision metal components, such as mobile phone casings and computer radiator fins. The high - precision forming and transfer capabilities of the press can meet the strict requirements for the size and shape of electronic components.

Conclusion: A Smart Investment for Modern Manufacturing
The Energy-Saving Straight Side Hydraulic Transfer Press is more than just a machine; it's a complete production system. By integrating the precision of straight-side guidance, the flexibility of hydraulics, and the automation of a transfer system with cutting-edge energy-saving technologies, it delivers:
● Lower Total Cost of Ownership through drastically reduced energy bills.
● Maximum Productivity in a compact footprint.
● Superior Part Quality and production consistency.
● Enhanced Sustainability credentials.
For any manufacturer looking to produce complex stamped parts at high volumes while prioritizing efficiency and cost control, this type of press represents the state of the art.
