High-speed hot stamping hydraulic presses utilize various protective devices to ensure operator safety and machine reliability. These include personal protective equipment (PPE), safety interlocks, emergency stop mechanisms, machine guarding, and maintenance protocols.  To ensure safety and operational efficiency, multiple protective devices are integrated into the system. Following are the key protective mechanisms.
1. Overload Protection
● Hydraulic Relief Valves: Prevent excessive pressure buildup in the hydraulic system.
● Mechanical Stoppers/Limiters: Restrict excessive ram movement to avoid structural damage.
● Load Sensors: Monitor force in real-time and halt operations if overload is detected.
2. Temperature Monitoring & Control
● Thermocouples/Infrared Sensors: Monitor die and workpiece temperature to prevent overheating.
● Cooling System Safeguards: Ensure proper cooling to avoid thermal deformation or failure.
3. Emergency Stop (E-Stop) System
● Hardwired E-Stop Buttons: Instantly cut power to the press in emergencies.
● PLC-Integrated Safety Relay: Ensures rapid shutdown if a fault is detected.
4. Mechanical & Hydraulic Safety Interlocks
● Two-Hand Control System: Requires both hands to operate, preventing accidental activation.
● Guarding & Light Curtains: Laser or infrared barriers stop the press if an obstruction is detected.
● Door Interlocks: Prevent operation if safety doors/guards are open.
5. Hydraulic System Protections
● Pressure Sensors & Switches: Detect leaks or pressure drops, triggering alarms or shutdowns.
● Filter Clog Indicators: Warn when hydraulic fluid filtration is compromised.
● Low Oil Level & Temperature Alarms: Prevent pump damage due to insufficient lubrication or overheating.
6. Electrical & Control System Protections
● Short-Circuit & Overcurrent Protection: Circuit breakers and fuses safeguard electrical components.
● Redundant PLC Controls: Fail-safe logic ensures safe operation even if one system fails.
● Backup Power Supply (UPS): Maintains control during power fluctuations.
7. Vibration & Shock Absorption
● Damping Systems: Reduce excessive vibrations that could damage the press or dies.
● Shock Absorbers: Minimize impact forces during high-speed operations.
8. Die Protection System
● Die Cushion Monitoring: Ensures proper cushioning to avoid die damage.
● Misalignment Sensors: Detect incorrect die positioning and halt the press.
9. Fire & Spark Prevention
● Spark Detection & Suppression: Critical in hot stamping due to high temperatures.
● Fire Extinguishing System (Foam/CO₂): Activated in case of fire hazards.
10. Operator Safety Features
● Anti-Pinch Sensors: Detect obstructions in the forming area.
● Warning Alarms & Lights: Alert personnel before press activation.

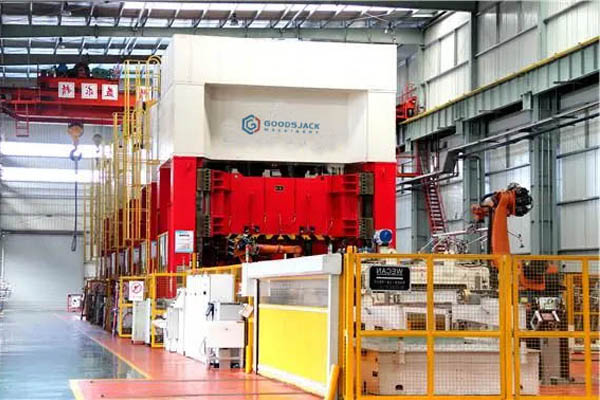

Goodsjack's high speed hot stamping hydraulic presses concepts with special protective device is cleverly designed to fit into the hydraulic cylinder of the equipment. By turning the knob, the shaft and bevel gear can be driven to operate, simplifying the setting steps and reducing human errors. At the same time, the device incorporates temperature monitoring technology. The temperature sensor monitors the hydraulic oil temperature in real time. The temperature control system will sound an alarm when the oil temperature is too high, ensuring the normal operation of the equipment and reducing the risk of overheating losses.
