Deep Drawing Hydraulic Press for Automobile CoverUpdate：2023-07-07 Hits：182
The The deep drawing hydraulic press is a multifunctional drawing hydraulic press, which is suitable for head stretching and automobile panel stretching. Automobile stretching parts are commonly used in automobile front and rear doors, hood, trunk lid, top cover and some body parts outside the side wall, which can be produced by stretching hydraulic presses. Stretching hydraulic press (head cover, automobile cover) is mainly composed of main machine body, hydraulic pump station, electrical control system, safety system and other auxiliary components.
Structural characteristics of deep drawing hydraulic press
Deep drawing hydraulic presses (automobile panels) have four-column and frame-type structures to choose from, and the stamping and stretching process of large-scale automotive panels with relatively complex shapes usually uses 1,000 tons, 1,500 tons, and 2,000 tons of single-action hydraulic stretching machines with large tables .

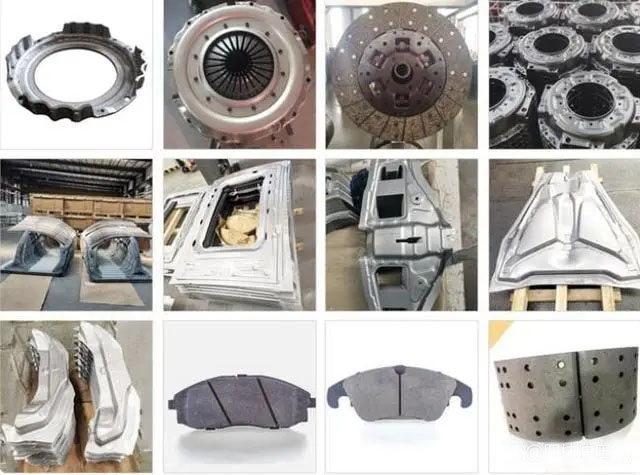

1. Four-column deep drawing hydraulic press (automobile cover parts): It adopts three-beam four-column hydraulic press structure, three-cylinder large table design, equipped with hydraulic cushion, servo PLC control system, stamping and stretching auto parts with high precision and fast speed. It is an auto parts Important equipment for stamping production. The equipment is widely used in automobile body panels, automobile brake pads, automobile fuel tanks, automobile chassis, automobile axle housings, automobile bumpers, automobile spoke forming, etc.
2. Frame-type deep drawing hydraulic press (automobile cover): Frame-type tension rod pre-tightening structure, high precision, good rigidity, four-corner and eight-sided guide rails, high guiding precision, and strong anti-eccentric load capacity. It is convenient to move the workbench, such as the supporting circuit of the lower chamber of the oil cylinder, and the interlocking circuit of the upper and lower chambers of the oil cylinder, etc., which are safe and superior. Imported PLC control, sensitive and reliable work.
A: High strength and rigidity: The frame-type stretching hydraulic press (automobile cover) adopts a strong steel structure frame, which has high strength and rigidity, can withstand large tensile force and pressure, and ensures the stability and precision of workpiece forming .
B: Large stroke and opening height: frame-type deep drawing hydraulic press (automobile panel) usually has a large stroke and opening height, which can meet the forming requirements of automobile panels of different sizes, increasing the flexibility and adaptability of production.
C: Large load capacity: Automobile panels are usually made of thicker and harder materials, which require a large force to be stretched and deformed. The frame-type stretching hydraulic press (automobile panel) has a large load capacity and can provide sufficient pressure and force to meet the forming requirements of the workpiece.
D: Multi-station operation: The frame-type deep drawing hydraulic press (automobile cover) can be designed in the form of multi-station operation, which can process multiple workpieces at the same time, improve production efficiency and save energy.
E: Stable control system: The frame-type deep drawing hydraulic press (automobile panel) is equipped with a stable and reliable hydraulic system and control system, which can precisely control parameters such as hydraulic pressure, speed and stroke, and realize high-precision forming of automotive panels.
F: High efficiency and automation: The frame-type deep drawing hydraulic press (automobile panel) can be integrated with automation equipment and production lines to achieve high-efficiency production and automation operations, greatly improving production efficiency and product quality.
